Summary:
The colours of stars in the the CFHTLS D3 field are compared to synthetic colours produced by multiplying stellar spectra by the griz filter responses. The results indicate that the zeropoints have been calculated correctly and that the filter response curves are correct. |
Motivation:
In order to measure
photometric redshifts
using the template
method, it is absolutely essential to have accurate photometry
and to have accurate filter response functions. Bad photometry,
particularly systematic zeropoints offsets mean that observed
SED's will be poorly measured. Inaccurate filter response functions
mean that the templates will be poorly determined.
In either of these cases, the result be a poor match
between the observed SED's and the synthetic templates and
hence bad photometric redshifts.
A useful diagnostic of these effects is to examine the colours
of stars.
One can compare the observed colours of stars with synthetic
colours generated by multiplying stellar spectra by the
filter response functions. Then one plots colour-colour
diagram with the observed and synthetic colours.
Stars have a relatively constrained locus in colour space.
Any offsets between the observed and synthetic colours
indicates a problem with one or the other, either
zeropoint errors or problems with the filter response functions
or the software that multiplies the spectra by
the filters.
|

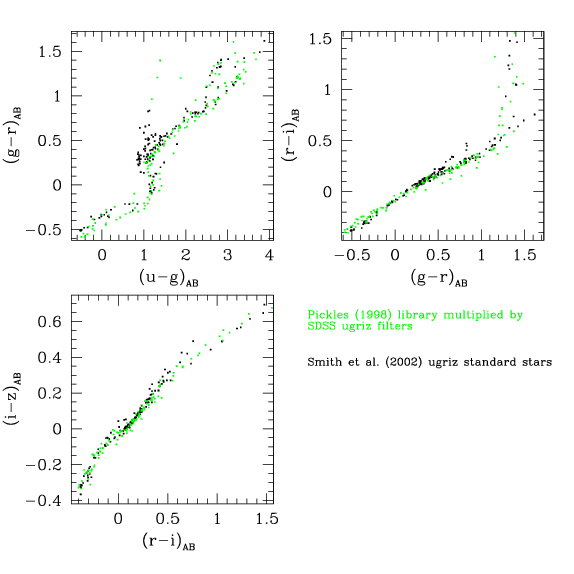

The figures at right show colour-colour plots for
stars in the SDSS ugriz system. The green dots represent
the results of multiplying the Pickles spectra by
the SDSS filter curves obtained from
here
The black dots show the colours of the ugriz standard stars
as given by
Smith et al. 2002 as
retreived from
this web site
The two sets of data are in good agreement. This indicates that the SDSS filter response functions are correct and that the software is function correctly. |

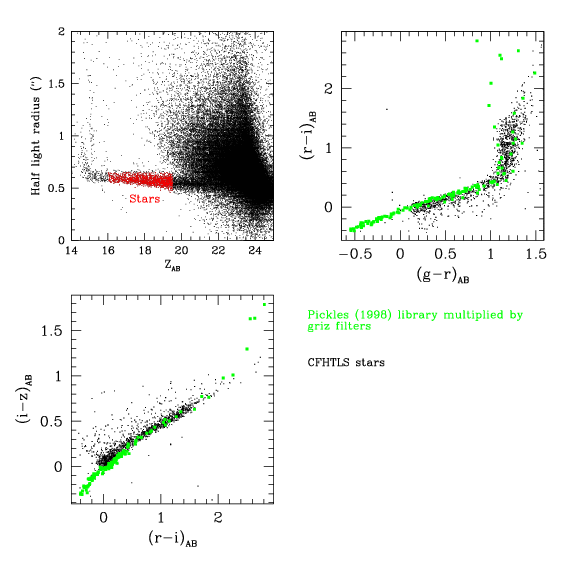

The figures at right show the same colour plots for the
stars in the CFHTLS D3 stacks prepared by Dave Balam.
The stars were identified by plot half-light radius against
magnitude. The stellar locus is easily identified down to z=19
and with some difficulty to z~21. This is shown in the top left panel
where the stars have been highlighted in
red.
Note that these cuts in half-light radius and magnitude are
somewhat conservative.
The other two plots show the colours of the stars selected in this manner in black overlaid in green with colours determined by multiplying the Pickles spectra by the CFHTLS griz filters. Note that the CFHTLS version of the ugriz filter set is not identical to the SDSS version, as discussed here Overall the colours of the CFHTLS stars seem to agree well with the predictions, at least to within 0.1 mag. The only cause for concern is the elbow at (g-r)=1.3 and (r-i)=0.5 where a slight displacement may be occuring. This indicates that the zeropoints are fairly well understood. |
Conclusion:

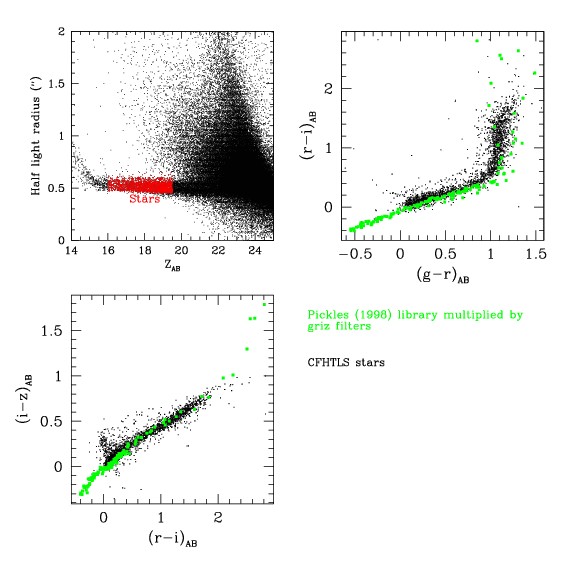

Since the test works for the SDSS data and D3 D3 data, it is probable that the software and filter curves are correct. However, the test fails for the D4 data, indicating that the zero-points are poorly understood at this point for this field. |
Data:
I've had a number of requests for the colours of the Pickles stars. Here they are:
|
